2015-Up 2&4WD Chevy Colorado, GMC Canyon 1.75-3" Stage 1 Leveling Kit

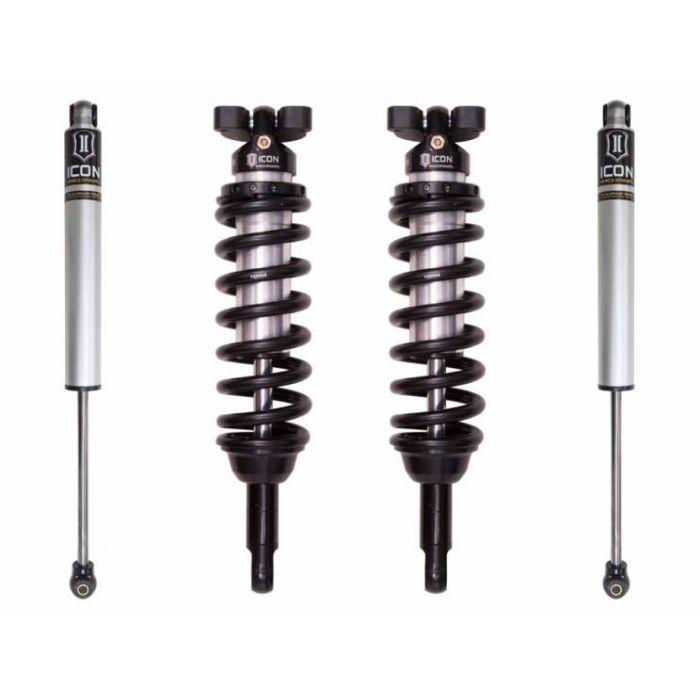

The ICON principal focus for the Colorado and Canyon is on increased wheel travel and damping ability for outstanding on and off road vehicle control and ride quality. This Stage 1 coilover leveling kit features Eibach coil springs engineered by ICON for superior vehicle "feel" through the range of travel. Overall wheel travel is increased 25%. The VS 2.5 coilover shocks feature an internal reservoir for exceptional cooling. To allow for larger, more aggressive wheel and tire combinations, the coilovers are height adjustable.

ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. For maximum performance, ICON recommends installation of their Uniball upper control arms sold separately.

• Vehicle specific tuned shocks for superior shock damping and control
• Improved ride quality over stock with no change in towing capacity
• Shocks adjust from 1.75" to 3" of lift
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
• Made in the USA
