2014-Up 4WD Ram 2500 2.5" Performance lift kit, Stage 2, VS 2.5 Reservoir shocks
Important Notes
Lifted height specs based on Crew Cab diesel engine
Gas engine will yield slightly taller lift heights
An adjustable track bar may be needed to realign the axle from left to right
May not be compatible with other manufacturers aftermarket track bars
Quick Overview
ICON has engineered their 2.5" Stage 2 Performance lift kit for the Ram 2500 to maximize wheel travel with ICON shock absorbers to strike the perfect balance for highway comfort and off-road performance. This moderate 2.5" lift features dual rate front coil springs along with front and rear VS 2.5 Reservoir shocks.
Additionally, multi-rate performance rear coil springs are included for a compliant ride. The lighter rate maintains a smoother and more controlled ride over washboard roads and small whoops. The secondary rate maintains exceptional ride quality over larger obstacles without sacrificing the factory payload.
The vehicle specific (VS) 2.5 reservoir shocks are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The piggyback and remote reservoir shocks feature the unique use of a 6061 billet aluminum manifold below the top cap of the shock to create an internal bump zone to provide an additional 20% of damping force.
The ICON 2.5 reservoir shocks operate over a wide temperature range. They feature a one-piece digressive piston design, 7/8” diameter chrome plated shock shaft, polyurethane bushings, forged steel mounting stems, PTFE lined spherical bearings, 6061 aircraft grade aluminum CNC machined components, CAD plated, and a precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance.
ICON offers the best suspension on the market for the most discriminating buyer looking for a top of the line product guaranteed to perform. The ICON performance systems are developed with the chase truck in mind and will significantly increase on and off-road performance for the aggressive driver.

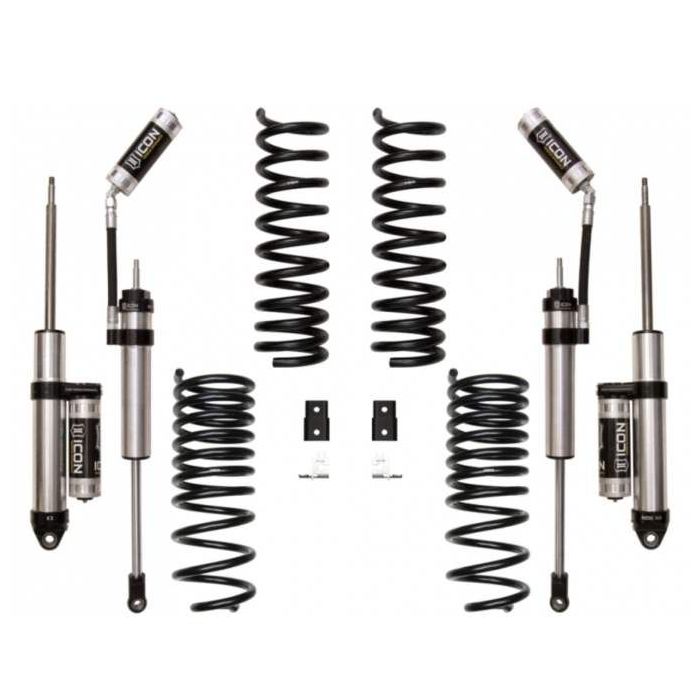

Kit Components
Front and rear dual rate coil springs
Front and rear VS 2.5 Reservoir shocks
Kit Features
Increased wheel travel and ride quality over stock
Made in the USA
Shocks rebuildable and revalvable
Less body roll than stock
No drive shaft modifications needed
View front spring instructions
View rear spring instructions
View front shock installation instructions
View rear shock installation instructions
- Make: Dodge
- Model: 2500
- Vehicle: 2019-Up Ram 2500 2.5" Performance lift kit, Stage 2, VS 2.5 Reservoir shocks
- 2or4: 4WD
- Tire Size: 35x12.50 tires on 17-20 x 8.5-9" wheel w/ 5.25"-5.50" BS
- Initialize: 1
- Model: 2500
- Vehicle: 2014-18 Ram 2500 2.5" Performance lift kit, Stage 2, VS 2.5 Reservoir shocks
- 2or4: 4WD
- Tire Size: 35x12.50 tires on 17-20 x 8.5-9" wheel w/ 5.25"-5.50" BS
- Initialize: 1
- Record Id: 1
- Model: 2500
- Vehicle: 2014-Up Ram 2500 2.5" Performance lift kit, Stage 2, VS 2.5 Reservoir shocks
- 2or4: 4WD
- Tire Size: 35x12.50 tires on 17-20 x 8.5-9" wheel w/ 5.25"-5.50" BS
- Initialize: 1
- Record Id: 2
ICON 2.5" leveling kit fits the following models:
2014 Ram 2500
2015 Ram 2500
2016 Ram 2500
2017 Ram 2500
2018 Ram 2500
2019 Ram 2500
2020 Ram 2500
2021 Ram 2500
