2014-Up 4WD Ram 2500 2.5" Performance lift kit, Stage 4, VS 2.5 CDCV Reservoir shocks

ICON has engineered their 2.5" Stage 4 Performance lift kit for the Ram 2500 to maximize wheel travel with ICON shock absorbers to strike the perfect balance for highway comfort and off-road performance. This moderate 2.5" lift features dual rate front coil springs along with front and rear VS 2.5 CDCV Reservoir shocks. A front adjustable track bar is included featuring 1" captured uniball bearing on the driver side. This minimizes overall deflection while allowing the right amount of movement so steering wheel feedback is not present. ICON uses a PTFE lined rod end on the passenger side to additionally reduce deflection and threads onto the left/right adjuster that allows you to adjust the track bar while on the truck for the perfect front end alignment. A rear adjustable track bar is also included. It also features PTFE lined rod ends and will center the rear axle.

Additionally, multii-rate performance rear coil springs are included for a compliant ride. The lighter rate maintains a smoother and more controlled ride over washboard roads and small whoops. The secondary rate maintains exceptional ride quality over larger obstacles without sacrificing the factory payload.

The vehicle specific 2.5 CDCV reservoir shocks are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The piggyback and remote reservoir shocks feature the unique use of a 6061 billet aluminum manifold below the top cap of the shock to create an internal bump zone to provide an additional 20% of damping force. When compressing at high velocity, this additional force helps prevent harsh bottom outs and also controls the suspension. With the turn of a knob, the externally adjustable CDC valve restricts oil flow into the reservoir creating 10 levels of compression damping force ranges.

The ICON 2.5 CDCV reservoir shocks operate over a wide temperature range. They feature a one-piece digressive piston design, 7/8” diameter chrome plated shock shaft, polyurethane bushings, forged steel mounting stems, PTFE lined spherical bearings, 6061 aircraft grade aluminum CNC machined components, CAD plated, and a precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance.

ICON offers the best suspension on the market for the most discriminating buyer looking for a top of the line product guaranteed to perform. The ICON performance systems are developed with the chase truck in mind and will significantly increase on and off-road performance for the aggressive driver..

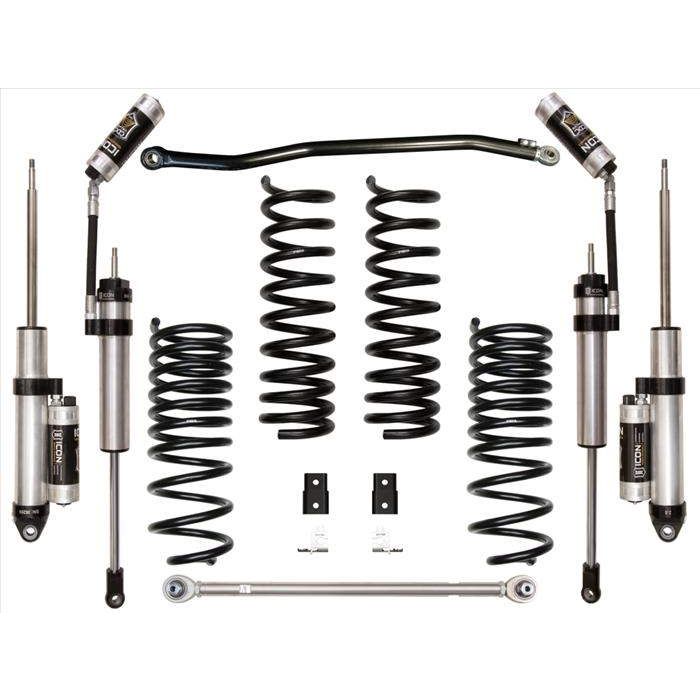

Kit Components
ICON engineered dual rate coil springs
Front and rear adjustable track bar
Front and rear VS 2.5 CDCV Reservoir shocks

Kit Features
Increased wheel travel and ride quality over stock
Made in the USA
Shocks rebuildable and revalvable
Less body roll than stock
No drive shaft modifications needed

View front shocks installation instructions
View front track bar installation instructions
View rear shocks installation instructions
View coil installation instructions
View rear track bar installation instructions
