2019-Up 2&4WD Ford Ranger 0-3.5" Stage 3 suspension system w/ Billet UCA

ICON offers a suspension system that’s been designed to dramatically increase the ride quality of your Ford Ranger whether on the pavement or in the dirt. This lift kit was designed specifically to increase wheel travel and damping ability. This translates into not only improved ride quality but also outstanding vehicle control. The Stage 3 system features vehicle specific tuned 2.5 Series coilover shocks with an internal reservoir for exceptional cooling properties and ICON-engineered coil springs that gives you superior vehicle “feel” throughout the range of travel. The height can be adjusted from 0” up to 3.5” allowing plenty of room for larger, more aggressive tire and wheel combinations.

The 2.0 Aluminum Series remote reservoir shocks for the rear have vehicle-specific valving to balance the performance of the truck from front to rear. The included bump stop kit increases rear end compliance.

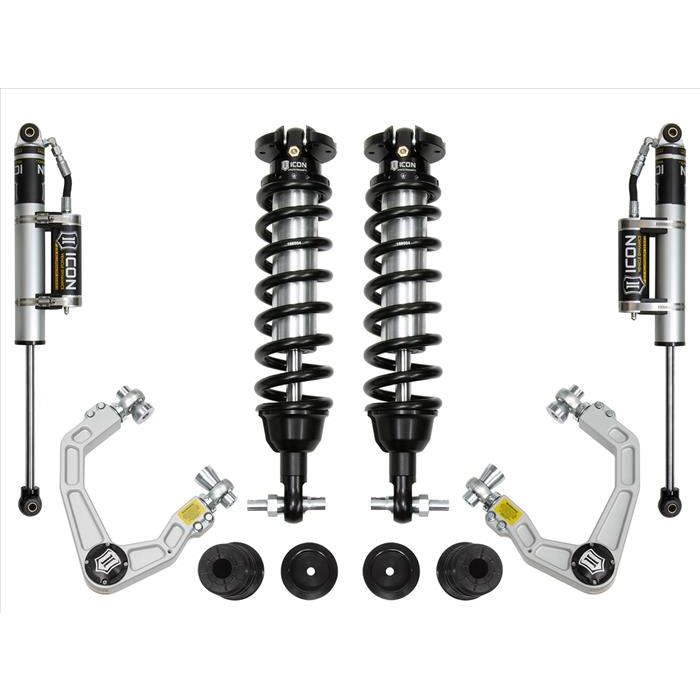

Kit Components
2.5 Series Adjustable coilovers
Billet Upper control arms
2.0 Aluminum Series remote reservoir rear shocks
Bump stop kit

Kit Features
Height-adjustable coilovers provide a range of 0-3.5” of front lift height
35% increase in front wheel travel over stock
ICON shocks feature vehicle specific tune for superior performance and ride quality
Remote reservoirs provide generous nitrogen and oil volume for enhanced cooling properties and consistent damping
Corrosion resistant anodized shock body
FK Rod End bearings provide extended longevity and minimal deflection
Shocks are fully rebuildable and revalvable
ICON upper control arms allow for additional wheel travel
Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
Delta Joint upper control arms carry ICON's exclusive 5 year limited warranty
CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
Direct bolt-in design makes for a simple and straightforward installation
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
