2017-21 4WD Ford F250, F350 Super Duty 8" Radius Arm lift kit, Dirt Logic 4.0 Resi Coilovers, Dirt Logic 2.25 shocks
Important Notes
Will not fit gas motors or Dually models
Models with a 2-piece rear driveshaft require carrier bearing kit ordered separately
Some models may require a dual steering stabilizer for oversized tires
Vehicles w/factory rear sway bar must order extended sway bar link kit FTS22276
Front driveshaft modification is required or order driveshaft FTS92035
Quick Overview
For maximum ride height, install the Fabtech 8" radius arm lift kit on your F250 and F350 Super Duty. This lift kit features Fabtech's massive Dirt Logic 4.0 Coilover conversion. Expect outstanding damping capacity while offroading and a quality ride on the pavement. The Coilover simply bolts in place of the factory coil spring without requiring the removal of the coil spring bucket. To allow for full compression travel when running oversized tires, the 4" diameter aluminum remote reservoir mounts above the Coilover. We think you'll agree the Dirt Logic 4.0 Coilover is the biggest and baddest on the market for the Ford Super Duty! The Fabtech 8" patented Radius Arm lift kit levels and substantially lifts the truck. The radius arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Also included is an offset, extended length track bar that is adjustable to address the hyper-sensitive steering box. This exclusive feature repositions the track bar to be closer to neutral with the factory drag link resulting in reduced bump steer and tire shake. The track bar is 4" longer than stock and attaches to the frame with a 1/4" thick frame bracket offset to the driver side with a support brace to eliminate deflection allowing a 15.5 wide tire on 5" backspace wheel to turn full lock without interference.

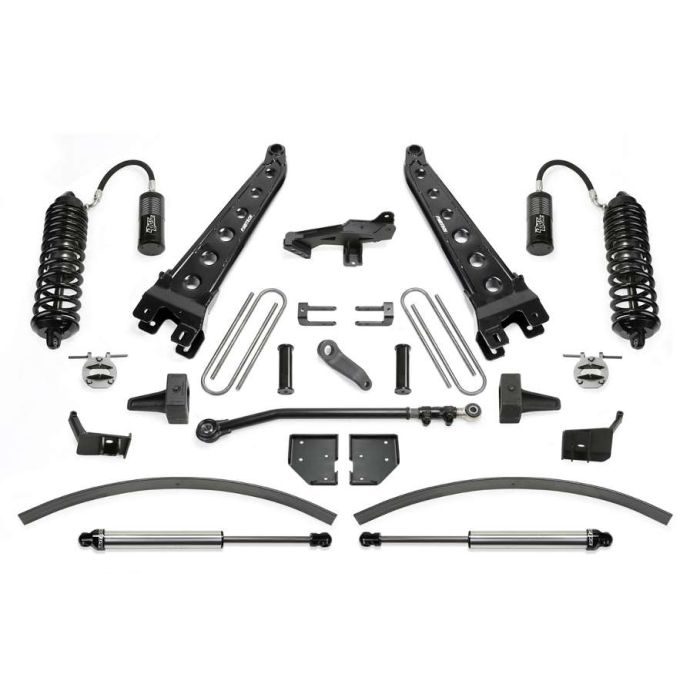

Kit Components
4.0 Dirt Logic Coilovers
Link Arms and Brackets
Extended length Track Bar and Bracket
Pitman Arm
Front Sway Bar Brackets
Front bump stops
Brake line brackets
Rear Block & U-Bolt Kit
Rear add-a-leafs
Rear Dirt Logic 2.25 Shocks
All Necessary Hardware
Detailed Install Instructions
Kit Features
FIVE SIXTY Powertrain Warranty
Increased Ground Clearance
Allows up to a 40" tall tire
38/13.50R18 tires w/18X9 wheels w/ 4-3/4" BS w/minor trimming
38/15.50R18 tires w/18X9 wheels w/ 4-3/4" BS w/cutting
38/13.50R20 tires w/20X9 wheels w/ 5" BS w/minor trimming
38/15.50R20 tires w/20X9 wheels w/ 5" BS w/cutting
40/15.50R20 tires w/20X9 wheels w/ 5" BS w/cutting
This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
Required and/or Related Items
-
$769.16
-
$828.26
-
$49.18
-
$91.72
-
$940.92
- Make: Ford
- Model: F250
- Vehicle: 2017-21 F250 8" Radius Arm lift kit, Dirt Logic 4.0 Resi Coilovers, Dirt Logic 2.25 shocks
- 2or4: 4WD
- Upsell: FTS419 FT, FTS220512 FT, FTS221162 FT, FTS92035 FT, FTS22276 FT
- Initialize: 1
- Make: Ford
- Model: F350
- Vehicle: 2017-21 F350 8" Radius Arm lift kit, Dirt Logic 4.0 Resi Coilovers, Dirt Logic 2.25 shocks
- 2or4: 4WD
- Upsell: FTS419 FT, FTS220512 FT, FTS221162 FT, FTS92035 FT, FTS22276 FT
- Initialize: 1
- Record Id: 1
Fabtech 8" lift kit fits following models:
2017 F250 Super Duty
2018 F250 Super Duty
2019 F250 Super Duty
2020 F250 Super Duty
2021 F250 Super Duty
2017 F350 Super Duty
2018 F350 Super Duty
2019 F350 Super Duty
2020 F350 Super Duty
2021 F350 Super Duty
