2017 4WD Ford F450, F550 10-Lug 6" Radius Arm lift kit, Performance shocks
$2,483.88
Product No
K2282-FT
FREE SHIPPING Lower 48 States
Important Notes
* Some models may not sit level after install.
* Fits both gas and diesel models.
* Fits both Dually and single rear wheel models.
* Fits both gas and diesel models.
* Fits both Dually and single rear wheel models.
Quick Overview
The Ford F450 and F550 10-lug trucks demand specialty parts when modifying the suspension. Fabtech has designed 6" lift kit components robust enough to provide the necessary additional strength needed when running oversized tires. Ten years of experience providing commercial and military applications makes Fabtech the right choice for these large trucks.
The replacement tubular radius arms are constructed with dimple die side plate for superior strength. The offset design allows full turning radius with wide tires. These radius harms have 1 degree of caster built in to accommodate the increased ride height. An additional 1.5-2 degrees of caster adjustment is available with the alignment cams on the arms. The radius arms also feature the Fabtech 5 Ton Joint on the pivot side at the frame. For over 10 years, these joints have been proven in rugged military use. They are both quiet and strong!
The coil springs are made in America and provide an additional 2" of wheel travel over stock. The factory long travel steering stabilizer is retained with the use of a bracket and support brace to reduce tire shimmy. Fabtech Performance Hydro Shocks feature high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds. Twin tube hydraulic construction with 9/16" hardened chrome piston rode and closed cell foam insert
37/12.50 tires on 17-18X9 rims with 4 3/4" BS with minor trimming
37/13.50 tires on 20X9 rims with 5" BS with minor trimming
285/70R19.5 tires with OE Dually wheels
This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
View kit installation instructions
The replacement tubular radius arms are constructed with dimple die side plate for superior strength. The offset design allows full turning radius with wide tires. These radius harms have 1 degree of caster built in to accommodate the increased ride height. An additional 1.5-2 degrees of caster adjustment is available with the alignment cams on the arms. The radius arms also feature the Fabtech 5 Ton Joint on the pivot side at the frame. For over 10 years, these joints have been proven in rugged military use. They are both quiet and strong!
The coil springs are made in America and provide an additional 2" of wheel travel over stock. The factory long travel steering stabilizer is retained with the use of a bracket and support brace to reduce tire shimmy. Fabtech Performance Hydro Shocks feature high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds. Twin tube hydraulic construction with 9/16" hardened chrome piston rode and closed cell foam insert

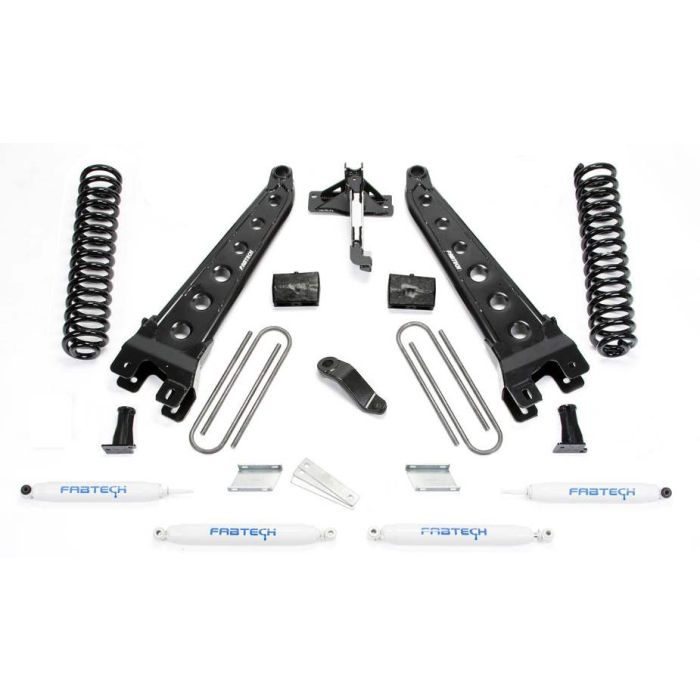

- Replacement radius arms
- Coil springs
- 1/4" thick steel track bar bracket
- Pitman arm
- Front and rear bump stop brackets
- 1/4" thick steel sway bar brackets
- Brake line brackets
- Steering stabilizer brackets
- Carrier bearing kit
- Rear block kit
- Performance shocks
37/12.50 tires on 17-18X9 rims with 4 3/4" BS with minor trimming
37/13.50 tires on 20X9 rims with 5" BS with minor trimming
285/70R19.5 tires with OE Dually wheels
This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
View kit installation instructions
- Make: Ford
- Model: F450, F550
- Vehicle: 2017 F450, F550 10-Lug 6" Radius Arm lift kit, Performance shocks
- 2or4: 4WD
Fabtech 6" lift kit fits following models:
2017 Ford F450 Super Duty
2017 Ford F550 Super Duty
2017 Ford F450 Super Duty
2017 Ford F550 Super Duty
