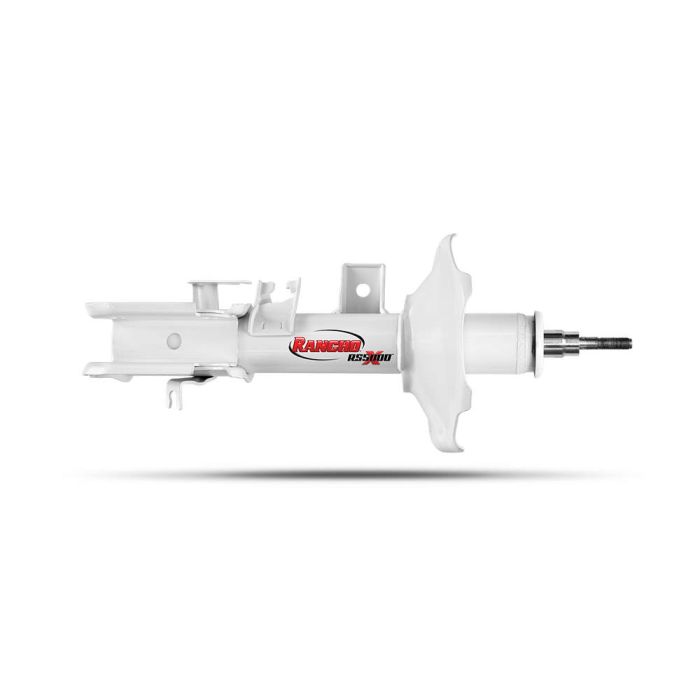

Rancho RS5000X Nitro Strut
Quick Overview
Rancho offers their RS5000X Series Nitro struts that are engineered to elevate performance and handling of your vehicle - whether street driving or off-roading. This patented strut design is unique due to the rebound valving system and advanced compression phase. Long an innovative leader for aftermarket shocks, Rancho does not disappoint with this design.
Off-road hazards and city street potholes are no match for the Progressive Engagement Valving in these Nitro struts. Rancho engineers designed the valving to flow the fluid early and reduce harsh initial impacts. The flow of fluid is then controlled in a progressive, gradual manner through the valving.
The RS5000X series struts feature a 2-1/4-inch diameter shock body and is gas pressurized to 150 psi. To control the rebound motion, each strut has a high-strength, polyurethane rebound bumper. The double welded loops provide additional strength and durability.
- Progressive Engagement Valving
- Tuned Compression Control Valve
- Enlarged 2-1/4-inch Twin Tube Body
- Gas Pressurization of strut
- 16 mm Nitro-Carburized Rod
- Full-Displaced 35 mm Bore
- 1-3/8-inch Diameter Sintered Iron Piston
- Rebound Bumper
- Black, Natural Rubber Bushings
- Low-Friction, Self-Lubricating Seal
- Glass-Filled, Fluon Banded Piston
- Double-Welded Loops
- Front Rear: front
- Year: Dec 1998-2001
- Drive: 4WD
- Make: Nissan
- Model: Pathfinder
- Vehicle: Pathfinder - right
- Front Lift: 0"
- Notes: Strut front end
- Initialize: 1
