6.5" lift kit for 1977-79 Ford F100, F150 4WD

By Superlift

Starting at

Original price $1,199.99 - Original price $1,199.99
Original price $1,199.99
Starting at$1,199.99
$1,199.99 - $1,199.99
Current price Starting at$1,199.99

A dropped pitman arm is required and ordered separately. The pitman arm ONLY fits 1978-79 models. For the 1977 models with "Y" steering linkage, you must convert to the inverted "T" style using an adjustable drag link and tie rod assembly. Only with this conversion will the required pitman arm work.
Extended brake hoses recommended but not required, order below
If the Ford is factory-equipped with (dual) front shocks, order Qty 2 Superlift Shadow Nitro shocks below
If equipped with factory sway bar, the links should be sectioned and welded

  • Details
  • Compatibility
  • Tire & Wheel Fitment

Lifting an early model Ford F100 and F150 requires the right combination of components for the best results. Superlift combines C bushings with radius arm and track bar mods for what they believe is the ideal combination of components. The over 50 years of experience building these early Ford kits supports this build! This combination of components ensures the correct suspension geometry on your lifted Ford truck, offering the best handling characteristics available. The adjustable track bar replaces the factory bar and allows for precise frame-to-axle alignment. Bring your Ford back to life with this 6.5" Superlift kit, making room for a set of 35's in the process.

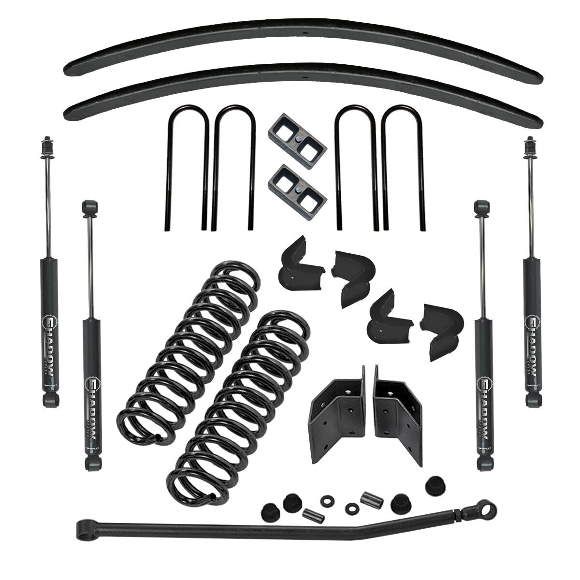

Kit Components
Superide front coil springs
Radius arm brackets
Radius arm bolts
4 degree C-bushing kit
Adjustable track bar
Rear add-a-leafs and a rear block kit
Ubolt kit
Front and rear Shadow Nitro shocks.

View kit installation instructions

Superlift lift kit fits the following 4WD models:
1977 Ford F150, F100
1978 Ford F150, F100
1979 Ford F150, F100

The Superlift 6.5" lift kit allows:
35x12.50 with 3.75-4" BS
37x12.50 with 3.75-4" BS
