6" lift kit for 1988-98 Chevy, GMC 1500 Pickup 4WD

By Zone

Starting at

Original price $1,203.59 - Original price $1,203.59
Original price $1,203.59
Starting at$1,203.59
$1,203.59 - $1,203.59
Current price Starting at$1,203.59

Includes 1999 Old Body style
Auto-trac models may require a new front driveshaft Requires exhaust modification to clear the front driveshaft
Not recommended for Tahoe/Yukon 4 door models
Does NOT fit 8 lug models

  • Details
  • Compatibility
  • Tire & Wheel Fitment

This 6" Zone Offroad lift kit for your Chevy, GMC K1500 truck and SUV will have you ready to head to the hills with a more aggressive stance. Zone's kit features 1-piece upper control arm drop brackets that allow the use of the factory steering knuckles and correct the ball joint geometry. This setup does not increase track width allowing the re-use of factory wheels. Stout 1/4" thick steel main crossmembers and a 3-point differential drop brackets re-align the CV shafts and driveshaft while maintaining a clean look. No driveshaft changes are required. A differential skid plate is included to protect the front differential and lock the crossmembers together. Clear your 35" tires with ease with this solid, well built lift kit from Zone!

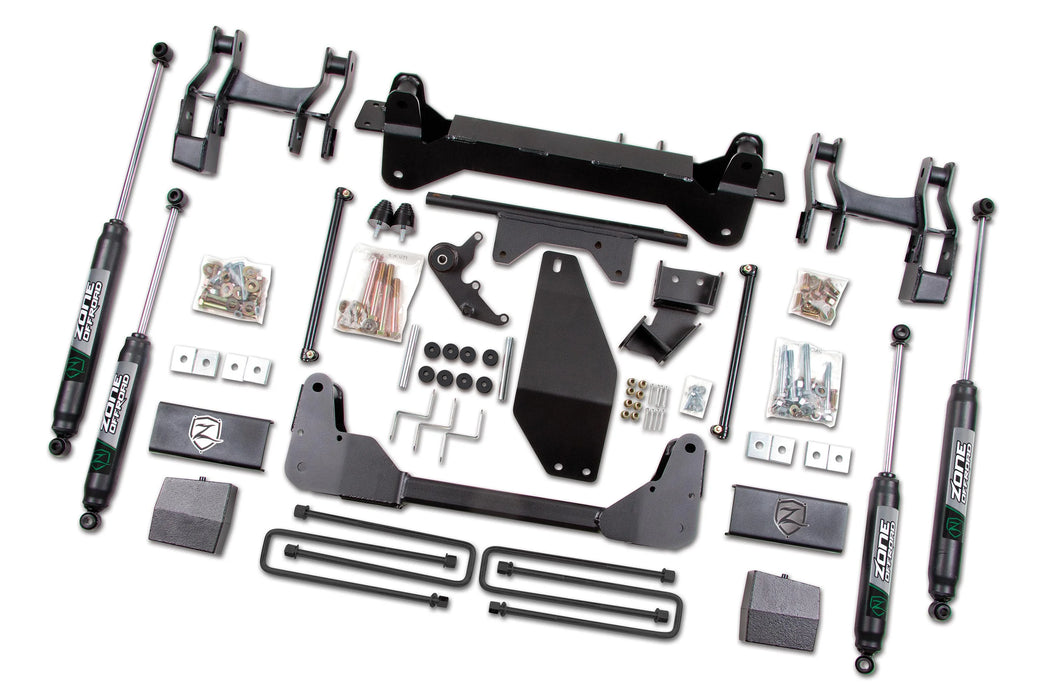

Kit Components
Front and rear crossmembers
Differential skid plate
Differential relocations brackets
Upper control arm relocation brackets
Complete kit with all hardware
Rear block kit with ubolts
Front and Rear Nitro Shocks

Kit Features
Heavy duty skid plate
1/4" steel crossmembers
A torsion bar un-loading tool is required for installation.
Exhaust modification to clear the front driveshaft and frame bracket modification and differential mount modifications are required
To determine if you have Auto-trac, it can be identified by a badge on the rear case that reads “NP246”. Also, the dash mounted display will show the Auto 4WD symbol. Cases with “NP243” are not auto-trac

View kit installation instructions

Zone Offroad 6 inch lift kit fits the following 4WD models:
1988 Chevy, GMC K1500 Pickup
1989 Chevy, GMC K1500 Pickup
1990 Chevy, GMC K1500 Pickup
1991 Chevy, GMC K1500 Pickup
1992 Chevy, GMC K1500 Pickup
1993 Chevy, GMC K1500 Pickup
1994 Chevy, GMC K1500 Pickup
1995 Chevy, GMC K1500 Pickup
1996 Chevy, GMC K1500 Pickup
1997 Chevy, GMC K1500 Pickup
1998 Chevy, GMC K1500 Pickup

1992 Suburban K1500
1993 Suburban K1500
1994 Suburban K1500
1995 Suburban K1500
1996 Suburban K1500
1997 Suburban K1500
1998 Suburban K1500
1999 Suburban K1500

1992 Tahoe
1993 Tahoe
1994 Tahoe
1995 Tahoe
1996 Tahoe
1997 Tahoe
1998 Tahoe
1999 Tahoe

1992 Yukon
1993 Yukon
1994 Yukon
1995 Tahoe
1996 Yukon
1997 Yukon
1998 Yukon
1999 Yukon

Zone Offroad kit allows:
Trimming may be required
35 x 12.5 with stock wheels and stock backspace
35 x 12.5 on 17 x 9 wheels and 6 in backspace
35 x 12.5 on 20 x 9 wheels and 6 in backspace
