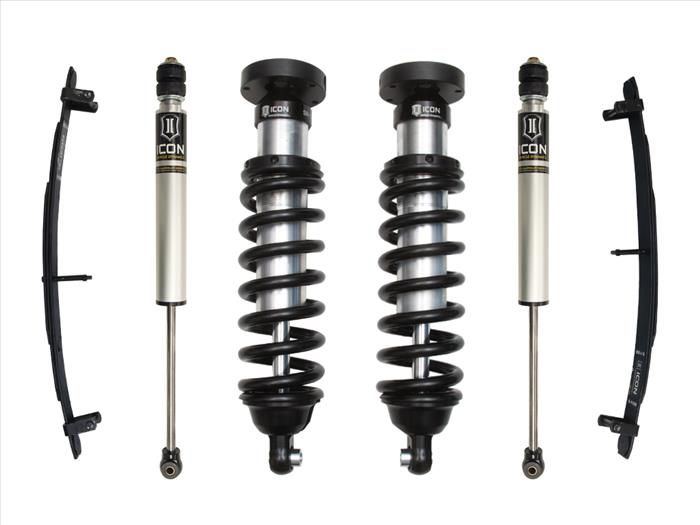

If you're a serious driver and looking for top quality components and enhanced performance, ICON Vehicle Dynamics has a set of adjustable coilovers and VS 2.0 shocks to fill the bill. The ICON primary focus is outstanding vehicle control and ride quality with increased wheel travel and damping ability. The Stage 1 leveling kit features vehicle specific 2.5" coilover shocks with an internal reservoir to provide exceptional cooling properties. The coilovers are ride height adjustable from 0" to 3" allowing for a larger and more aggressive tire and wheel combination.
The 2.0 VS Aluminum series monotube rear shocks are valved for your Tundra to balance the front and rear performance. They are 100% rebuildable and revalvable. The 2.0 series shocks operate over a wide temperature range and are designed with a nitrogen charged monotube internal reservoir. The 5/8" chrome plated hardened steel shaft with 6061 aluminum rod end, top cap and internals ensure strength and durability. Poly bushings, zinc plated sleeves for factory fitment. The 6063 anodized aluminum body provides superb heat dissipation, excellent corrosion resistance and a high-tech appearance. The rubber top out bumper allows noise free operation.
Kit Features
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.0 VS Aluminum Series with 5/8" polished nitro steel shaft
1.5" rear leaf expansion pack
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Made in the USA
View coilover installation instructions
ICON lift kit fits the following models:
2000 Toyota Tundra
2001 Toyota Tundra
2002 Toyota Tundra
2003 Toyota Tundra
2004 Toyota Tundra
2005 Toyota Tundra
2006 Toyota Tundra
