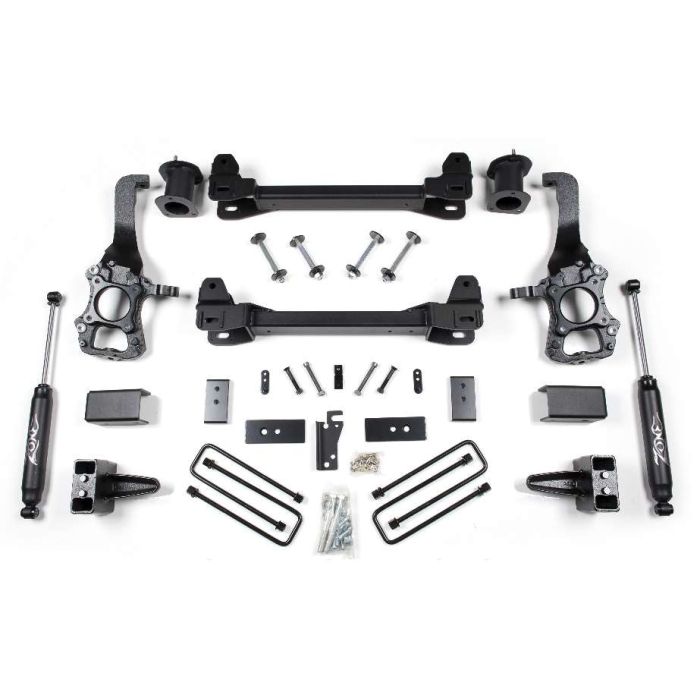

The Zone Offroad 6" lift kit for the Ford F150 includes new coilover struts custom valved for larger tires, improved ride and optimal handling. The fully cast, CNC machined and resonant frequency tested knuckles ensure proper steering geometry while reducing installation time. These correct the tie rod and ball joint geometry with no track width change. This kit also features heavy 1/4" thick main crossmembers and a differential skid plate. The rear is lifted with a 4.5" dual pin block and u-bolt kit that offsets the axle closer to the center of the wheel. Rear Nitro shocks are included.

This lift will not work with 17" wheels. If using 18x9 wheels with 5.5" BS, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
35x13.50 tires on 18x9 wheels with 4.5"-5" back spacing
37x12.50 tires on 18x9 wheels with 5" back spacing
37x12.50 tires on 20x9 wheels with 5"-5.5" back spacing

Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.

View kit installation instructions</strong
