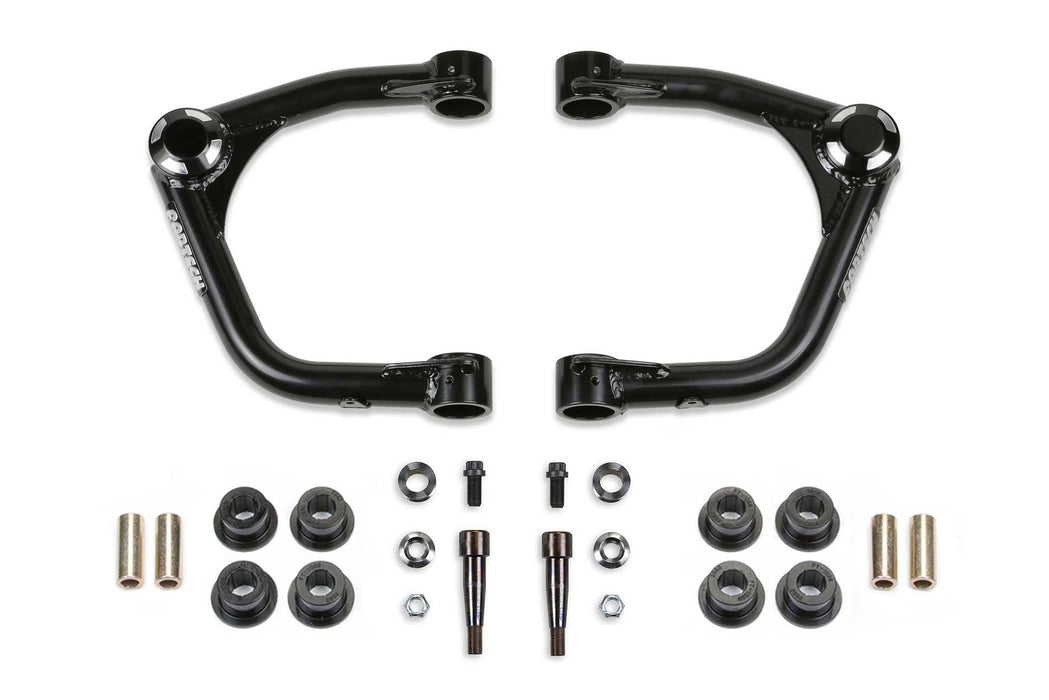

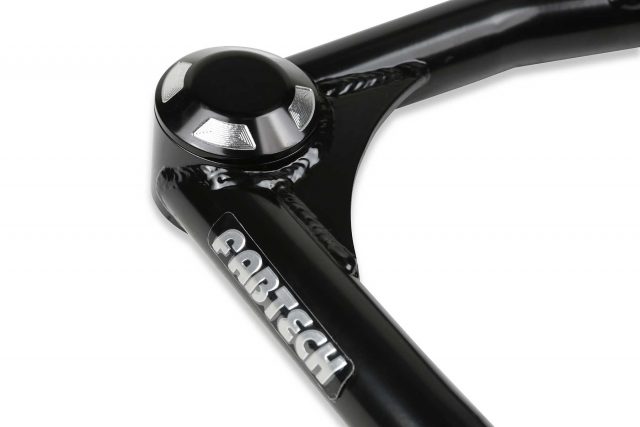

2019-24 Silverado Sierra 1500, Trail Boss AT4 1500 Uniball Upper Control Arms

By Fabtech

Starting at

Original price $709.50 - Original price $709.50
Original price $709.50
Starting at$709.50
$709.50 - $709.50
Current price Starting at$709.50

Fits 0-6" Kits
Does not fit 2019 Chevy Silverado LD or 2019 GMC Sierra Limited 1500 models. Use 2018 model application for these vehicles
Does not fit Supercruise models

  • Details
  • Compatibility
  • Tire & Wheel Fitment

With aggressive off-road use, the stock ball joint upper control arms can become worn and will eventually fail. Upgrade to the Fabtech Upper Control arms with 1" FK Stainless PTFE lined Uniballs for increased front suspension strength and additional caster that provide superior performance with oversized tires.

This is an excellent upgrade for stock or lifted systems to provide demanding drivers the very best for their Silverado or Sierra 1500. These controls arms will help reduce road noise at the same time providing greater longevity.

  • Arms eliminate factory upper ball joint with super strong 1" ID Stainless Steel American Uniball for increased suspension strength
  • Additional caster is built into Arms for enhanced align ability with oversized tires
  • 1.50" OD .120" wall 4130 Chromoly tubing reduces flex found in stock arms for more positive road feel
  • 17-4 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature
  • 17-4 Stainless steel misalignments for proper clearance of large Uniballs throughout the travel range
  • .250 wall DOM bushing barrels with welded gussets for strength


View installation instructions

Fabtech Uniball upper control arms fit the following models with 0-6" of lift:
2019 Chevy Silverado 1500 4WD
2020 Chevy Silverado 1500 4WD
2021 Chevy Silverado 1500 4WD
2022 Chevy Silverado 1500 4WD
2023 Chevy Silverado 1500 4WD
2024 Chevy Silverado 1500 4WD

2019 GMC Sierra 1500 4WD
2020 GMC Sierra 1500 4WD
2021 GMC Sierra 1500 4WD
2022 GMC Sierra 1500 4WD
2023 GMC Sierra 1500 4WD
2024 GMC Sierra 1500 4WD

2019 Chevy Silverado 1500 TrailBoss 4WD
2020 Chevy Silverado 1500 TrailBoss 4WD
2021 Chevy Silverado 1500 TrailBoss 4WD
2022 Chevy Silverado 1500 TrailBoss 4WD
2023 Chevy Silverado 1500 TrailBoss 4WD
2024 Chevy Silverado 1500 TrailBoss 4WD

2019 GMC Sierra 1500 AT4 4WD
2020 GMC Sierra 1500 AT4 4WD
2021 GMC Sierra 1500 AT4 4WD
2022 GMC Sierra 1500 AT4 4WD
2023 GMC Sierra 1500 AT4 4WD
2024 GMC Sierra 1500 AT4 4WD
